Prerequistes
Prerequisites are to create 1 azure app registration and azure blob container and of course in DMF - Recurring data job export ( Batch Data API ) setup.

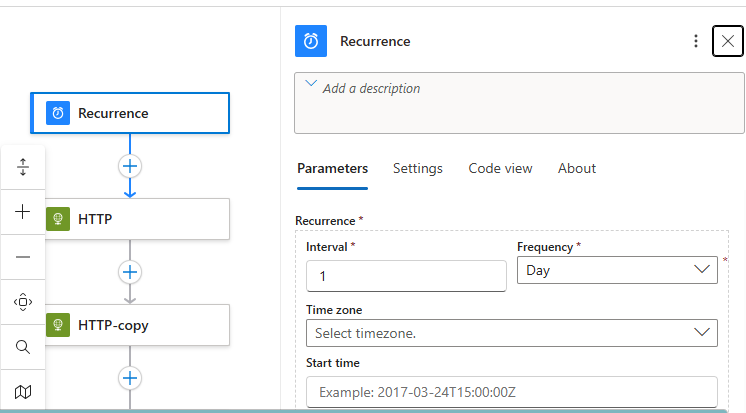

Step - 1 : Add Recurrence

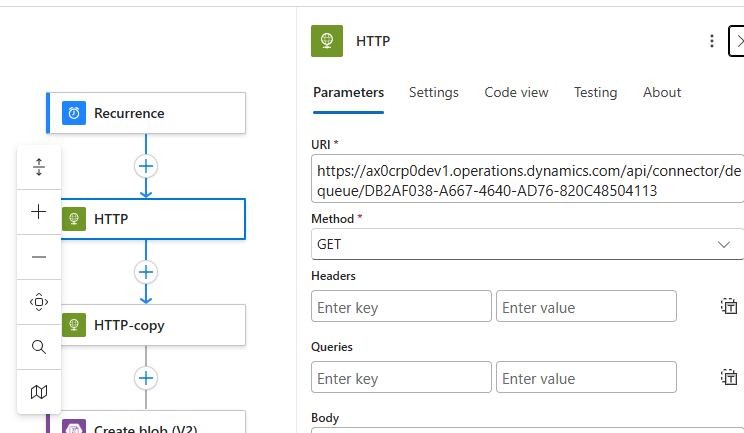

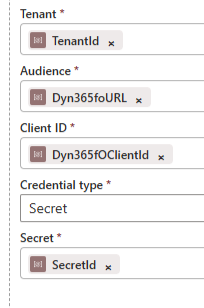

Step - 2 : Add a HTTP connector with URI of d365 fno deque API and all authentication details from azure app registration. Use GET method.

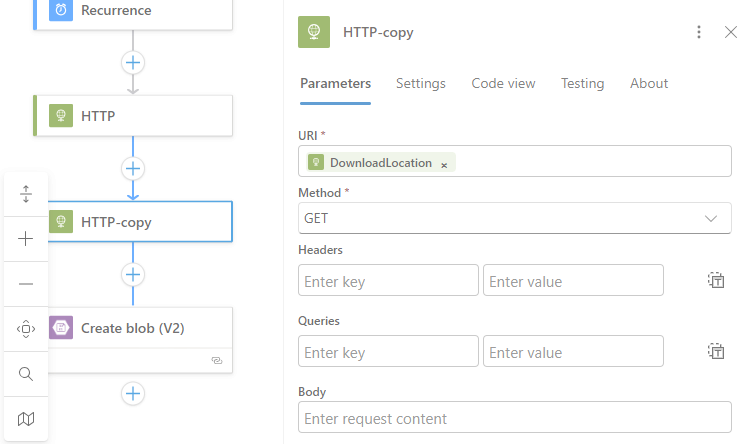

Step - 3 : Add another HTTP connector. Add all authentication details again with download location on URI. Use GET method.

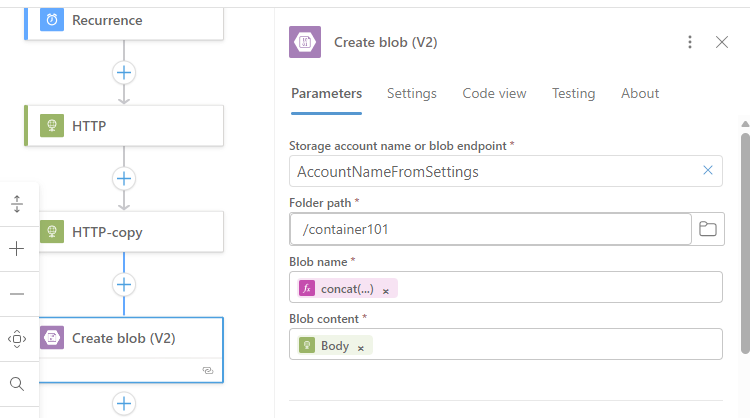

Step - 4 : Add Create Blob (V2) connector add 2nd HTTP conector's body and blob name as zip file.
* Use this below string format for blob name.
FULL XML (Code View):
{
"definition": {
"$schema": "https://schema.management.azure.com/providers/Microsoft.Logic/schemas/2016-06-01/workflowdefinition.json#",
"contentVersion": "1.0.0.0",
"triggers": {
"Recurrence": {
"recurrence": {
"interval": 1,
"frequency": "Day"
},
"evaluatedRecurrence": {
"interval": 1,
"frequency": "Day"
},
"type": "Recurrence"
}
},
"actions": {
"HTTP": {
"runAfter": {},
"type": "Http",
"inputs": {
"uri": "https://ax0crp0dev1.operations.dynamics.com/api/connector/dequeue/DB2AF038-A667-4640-AD76-820C48504113",
"method": "GET",
"authentication": {
"type": "ActiveDirectoryOAuth",
"tenant": "@{parameters('TenantId')}",
"audience": "@{parameters('Dyn365foURL')}",
"clientId": "@{parameters('Dyn365fOClientId')}",
"secret": "@{parameters('SecretId')}"
}
},
"runtimeConfiguration": {
"contentTransfer": {
"transferMode": "Chunked"
}
}
},
"Create_blob_(V2)": {
"runAfter": {
"HTTP-copy": [
"Succeeded"
]
},
"type": "ApiConnection",
"inputs": {
"host": {
"connection": {
"name": "@parameters('$connections')['azureblob']['connectionId']"
}
},
"method": "post",
"body": "@body('HTTP-copy')",
"headers": {
"ReadFileMetadataFromServer": true
},
"path": "/v2/datasets/@{encodeURIComponent(encodeURIComponent('AccountNameFromSettings'))}/files",
"queries": {
"folderPath": "/container101",
"name": "@concat('vendorExport2','.zip')",
"queryParametersSingleEncoded": true
}
},
"runtimeConfiguration": {
"contentTransfer": {
"transferMode": "Chunked"
}
}
},
"HTTP-copy": {
"runAfter": {
"HTTP": [
"Succeeded"
]
},
"type": "Http",
"inputs": {
"uri": "@body('HTTP')?['DownloadLocation']",
"method": "GET",
"authentication": {
"type": "ActiveDirectoryOAuth",
"tenant": "@{parameters('TenantId')}",
"audience": "@{parameters('Dyn365foURL')}",
"clientId": "@{parameters('Dyn365fOClientId')}",
"secret": "@{parameters('SecretId')}"
}
},
"runtimeConfiguration": {
"contentTransfer": {
"transferMode": "Chunked"
}
}
}
},
"outputs": {},
"parameters": {
"Dyn365fOClientId": {
"defaultValue": " 797e9002-d20b-4980-8964-b3daaf17e565",
"type": "String"
},
"Dyn365foURL": {
"defaultValue": "https://ax0crp0dev1.operations.dynamics.com/",
"type": "String"
},
"processQueueName": {
"defaultValue": "LogicApps101",
"type": "String"
},
"ExportJobId": {
"defaultValue": "DB2AF038-A667-4640-AD76-820C48504113",
"type": "String"
},
"ContainerName": {
"defaultValue": "container101",
"type": "String"
},
"TenantId": {
"defaultValue": "ec5106cd-7ef3-4f82-a502-94d3bf85877b",
"type": "String"
},
"SecretId": {
"defaultValue": "Che8Q~j2BEz_yTkoA551L0pxna.64EmUyrODVaLC",
"type": "String"
},
"$connections": {
"type": "Object",
"defaultValue": {}
}
}
},
"parameters": {
"$connections": {
"type": "Object",
"value": {
"azureblob": {
"id": "/subscriptions/ea754aa9-0abb-4795-bfc6-d2b25cac94cc/providers/Microsoft.Web/locations/centralindia/managedApis/azureblob",
"connectionId": "/subscriptions/ea754aa9-0abb-4795-bfc6-d2b25cac94cc/resourceGroups/D365FNO-DEV2/providers/Microsoft.Web/connections/azureblob",
"connectionName": "azureblob",
"connectionProperties": {}
}
}
}
}
}
